Multi-way Launch, Mission-wide Reach

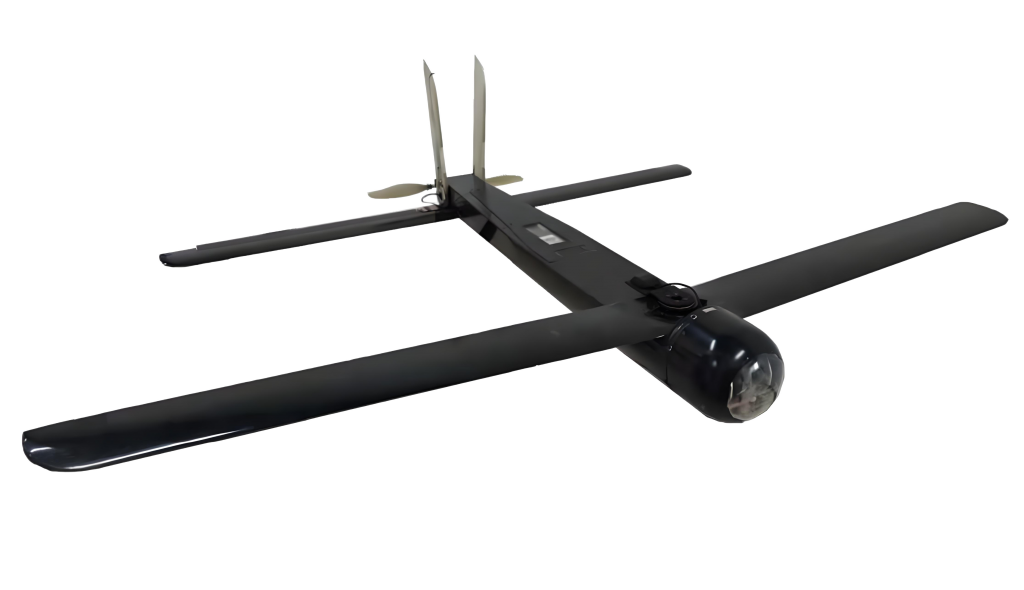

The TF-01, a loitering munition product combining UAV with guided munition technology, can be launched and dropped by a variety of platforms in a variety of ways. It can patrol the mission area autonomously for a relatively long time, and can perform a variety of tasks such as target reconnaissance and identification, precision strike, fire guidance and communication relay, etc. It is a new type of munition system with both UAV and missile characteristics.
Cluster Launch
2.5kg Warhead
1m Strike Accuracy
TV Guidance

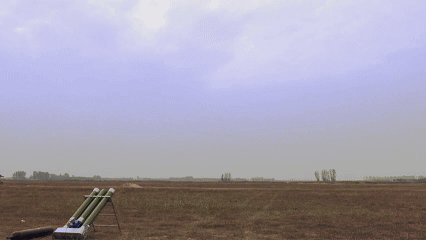

Launching video
Equipping scheme

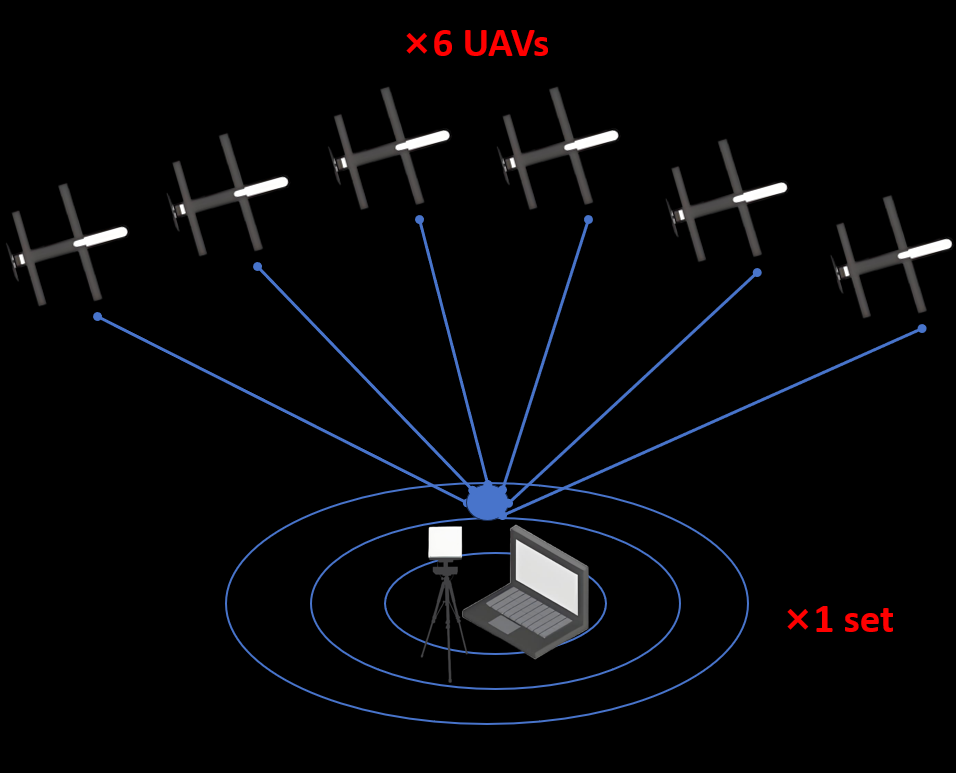

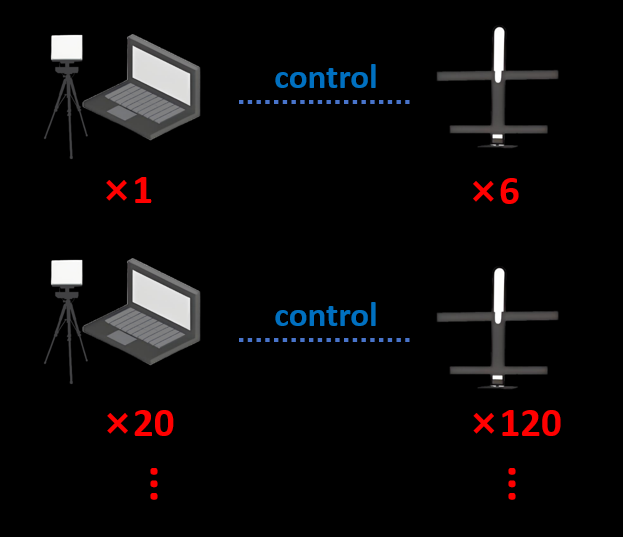

Ground control subsystem supports simultaneous ground control and management of multiple UAVs
TF-01 is capable of cruising with a 2.5kg warhead for over 30min and is primarily applied in ground – combat scenarios.
It’s 1.1m long, 14cm in diameter, and weighs 10kg, offering simplicity, portability, flexibility, and easy operation.
This device has the ability to engage targets up to 15km away, identify vehicles from 1km and humans from 360m, and effectively detect combatants hidden behind bunkers or inside vehicles for air-strikes.

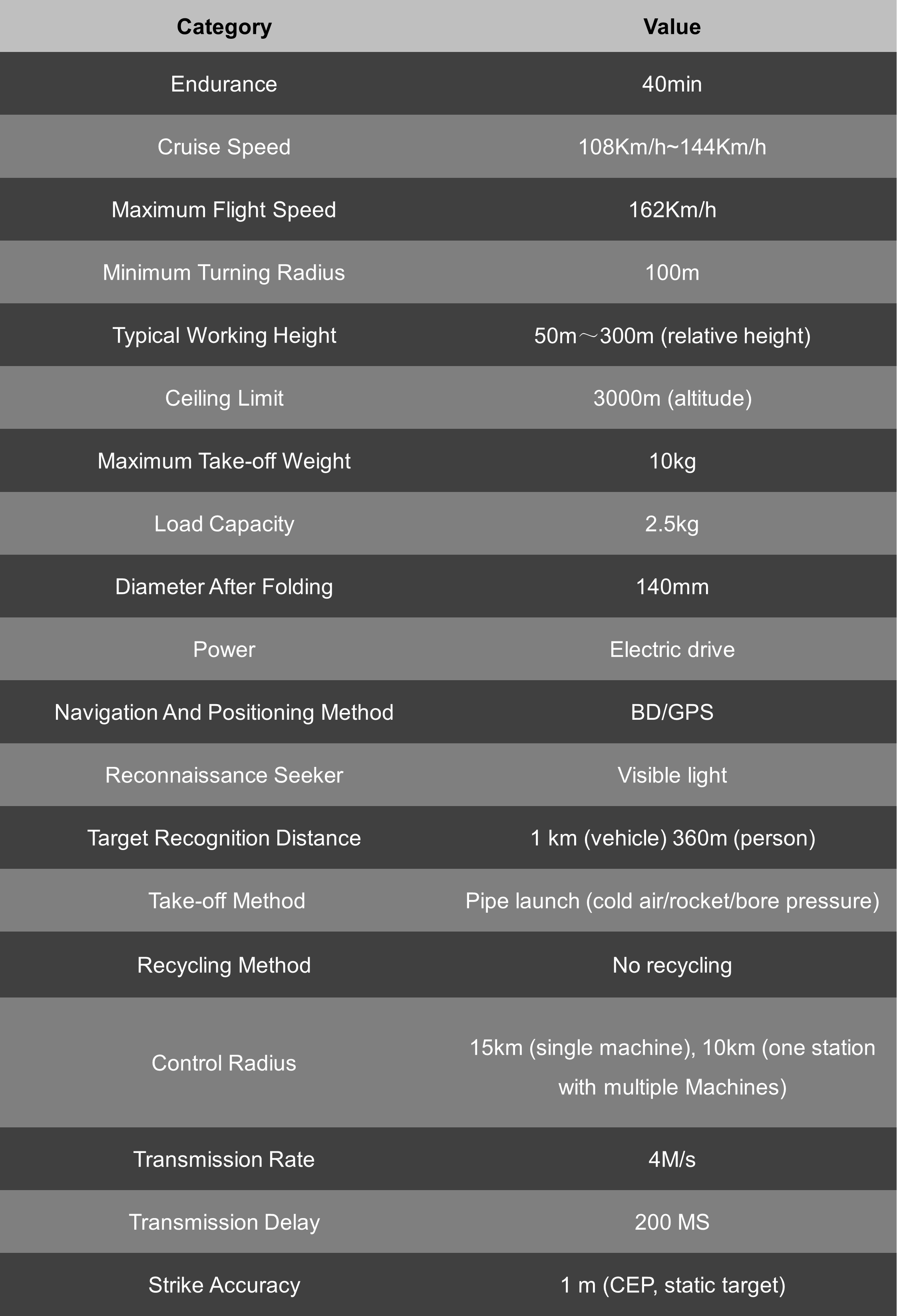

Specifications
Configuration List
TF-01 ×1

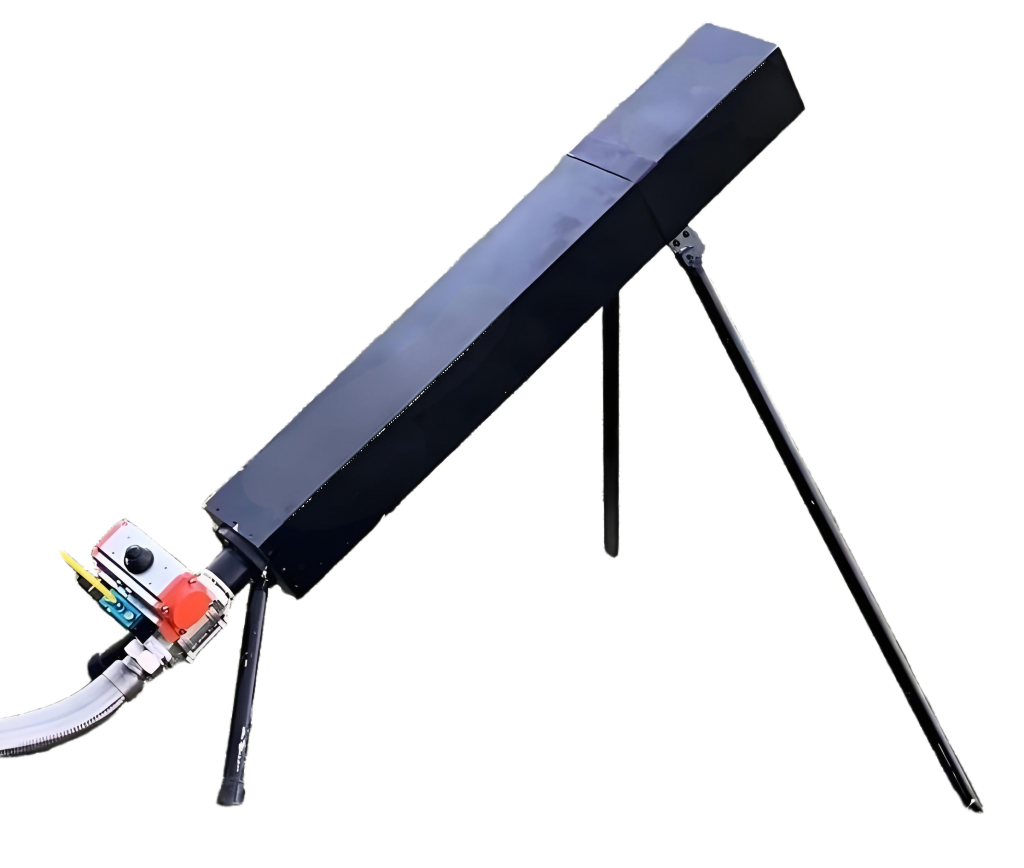

Launch cylinder x1

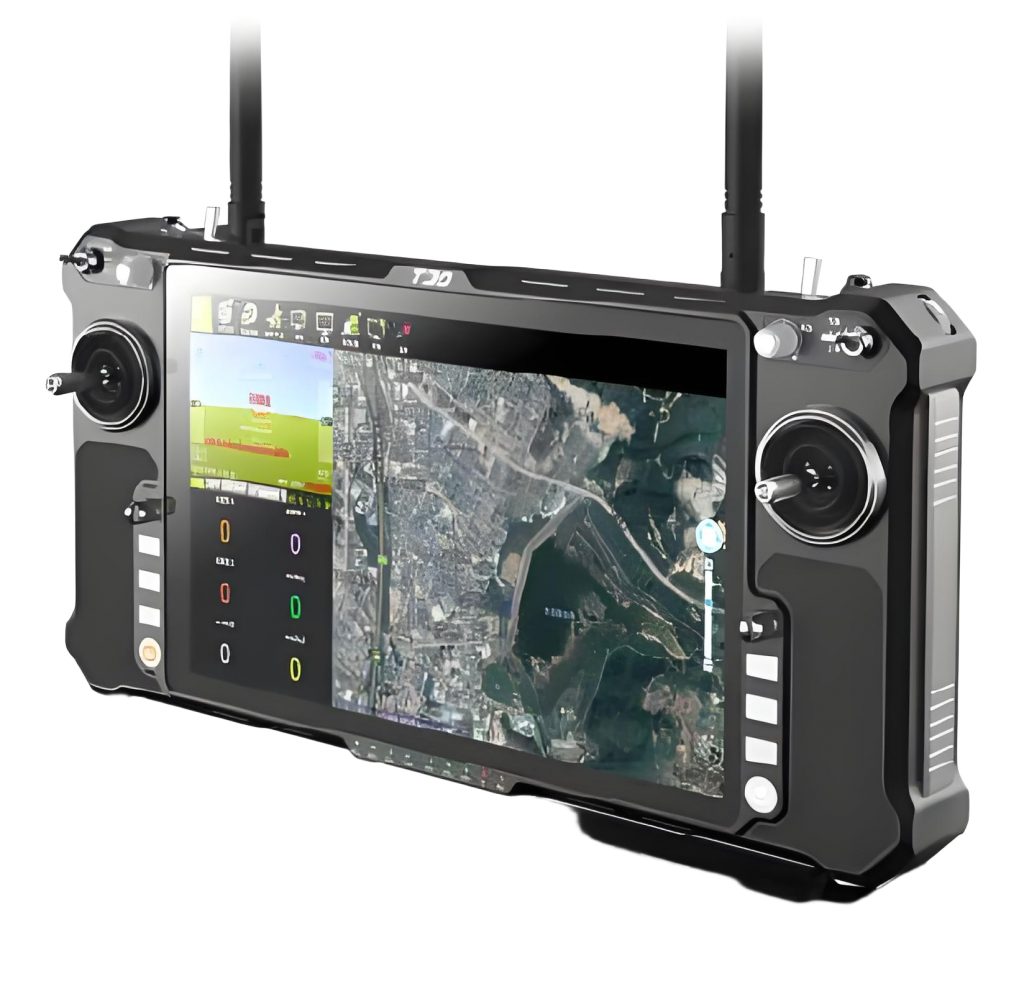

Handheld Integrated Ground Control Station x1

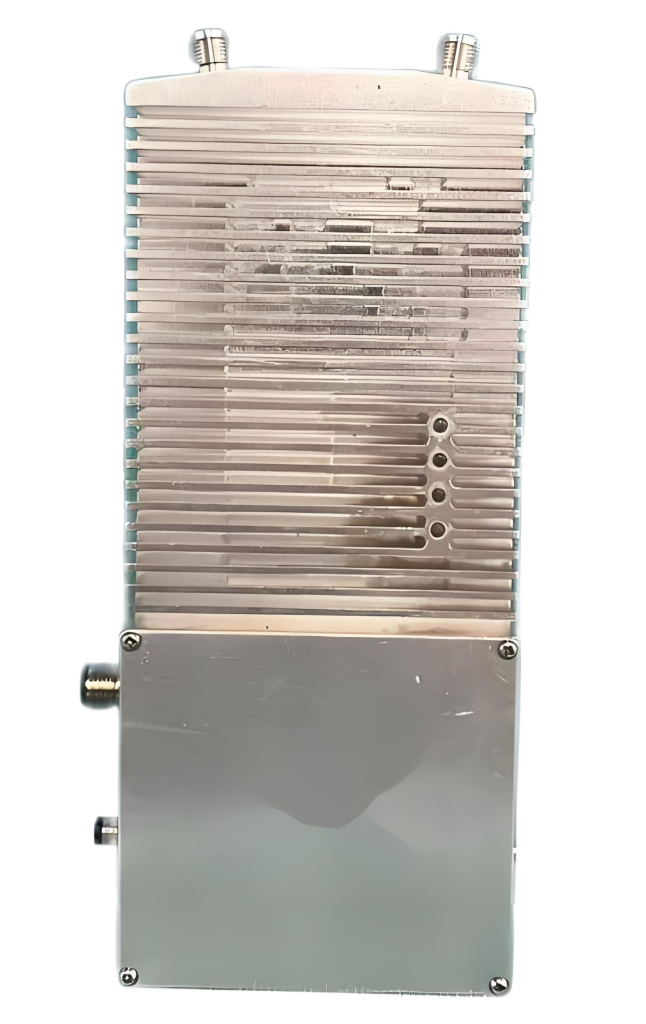

30km link x1
Industry Application
Targeted strike
Suicide strike
